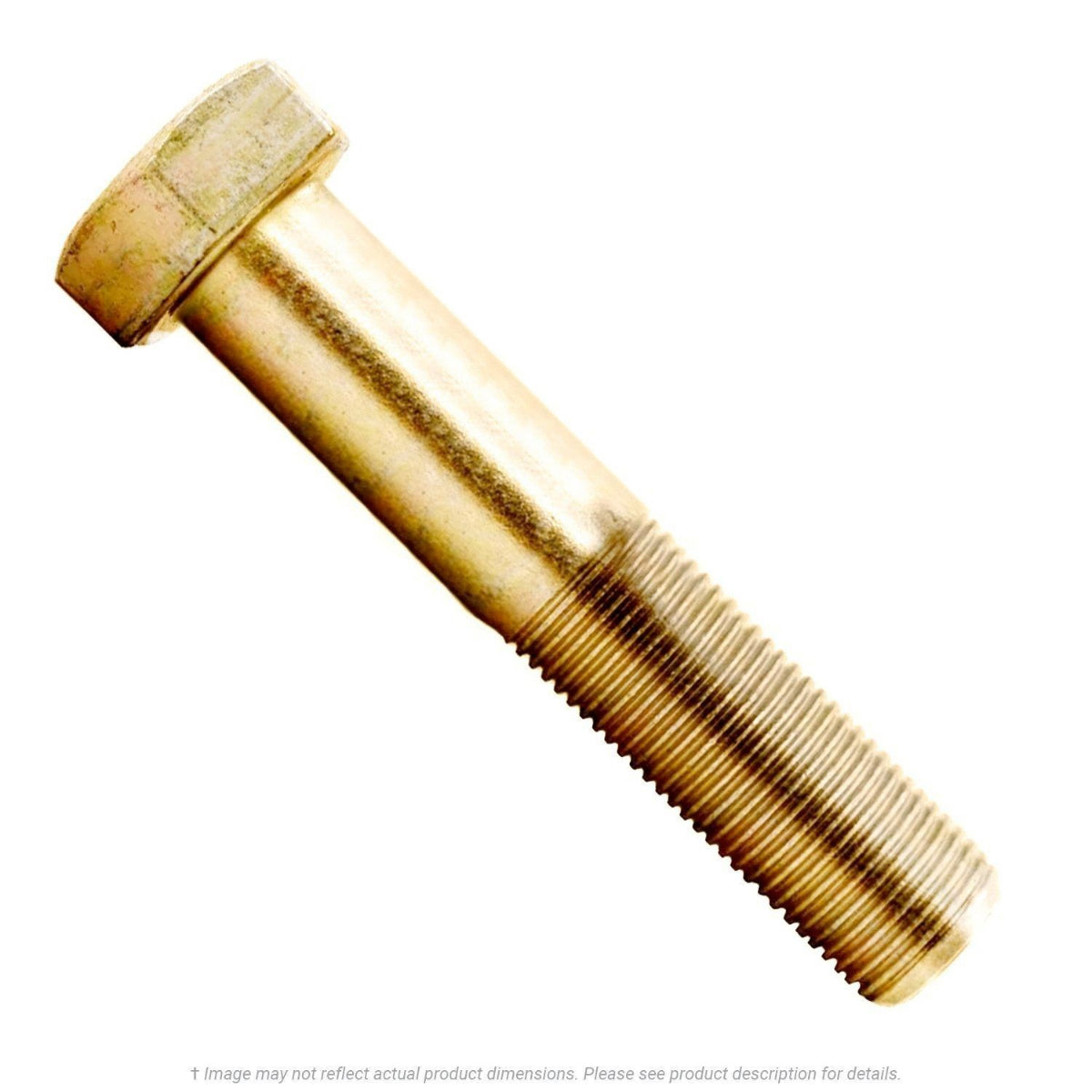

5/8"-18 x 5" Yellow Zinc Hex Head Cap Screw Grade 8

In stock
SKU: 9968
Regular price $6.70
K.L. Jack & Co.

5/8"-18 x 5" Yellow Zinc Hex Head Cap Screw Grade 8

Grade 8 Hex Head Cap Screws are manufactured from medium carbon alloy steel that has been quenched and tempered for strength. Grade 8 is the highest grade offering of the SAE J429 classification with a minimum tensile strength exceeding that of Gr.5 by 25% to over 40%, depending on the diameter. Grade 8 HHCS are commonly used in heavy construction equipment, commercial vehicles and applications that demand a high strength fastener. Hex Head Cap screws feature an integral washer face under the head for a smooth bearing surface and a chamfered thread at the tip to allow for ease of assembly. They can be used in a threaded hole or mated with a nut in a through bolting application. Grade 8 bolts are identified by a head marking with 6 radial lines evenly spaced 60 degrees apart. They meet the material specification SAE J429 Grade 8 and can be supplied either in a plain finish or with a Zinc Yellow (Dichromate) plating with a chromate secondary layer that offers additional protection from corrosion and has an attractive yellow/gold appearance.

  • Full Size Proof Stress 120,000 psi
  • Minimum Yield strength 130,000 psi
  • Minimum Tensile strength 150,000 psi

  • Manufacturer KL Jack Quality Vendor
    Item Type Hex Cap Screw - Inch
    System of Measurement Inch
    Drive Type Hex
    Diameter 5/8"
    Length (inches) 5"
    Finish Yellow Zinc
    Grade 8
    Head Style Hex
    Hex Size 15/16"
    Material Steel
    Supplier Part Number 16356
    Tensile Strength 150,000 PSI
    Threads Per Inch 18
    Thread Length 1-1/2"
    Thread Style Partial Thread
    Thread Type Fine


    62F500HCS8Z
