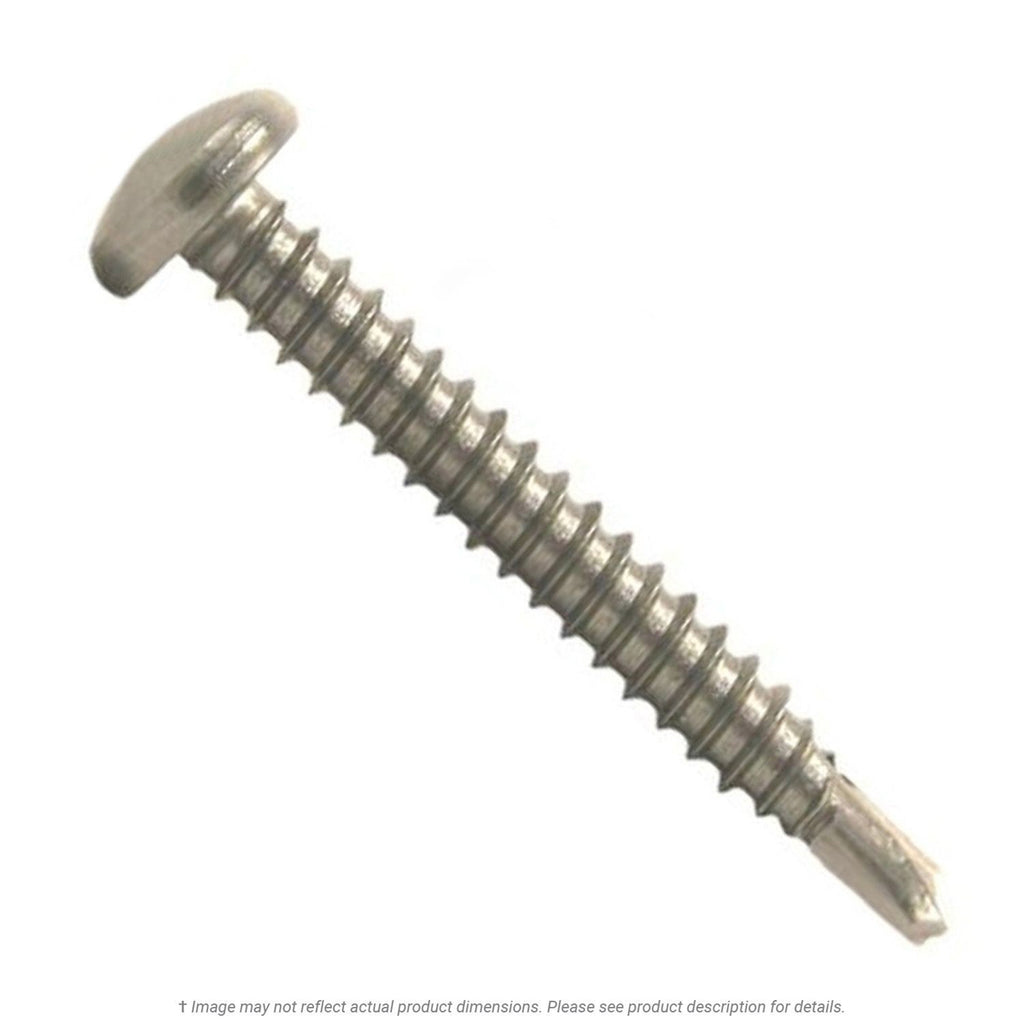

#10 x 3/4" Stainless Steel Phillips Pan Head Tek Screw 410
KL Jack & Co.

#10 x 3/4" Stainless Steel Phillips Pan Head Tek Screw 410

Code: 5681~EACH
$0.40
In Stock
  • Order by 2pm EST for same day shipping

  • Call 603-224-7370 to reach a parts specialist

  • No Sales Tax in NH


 WARNING:
Cancer and Reproductive Harm
www.p65warnings.ca.gov
K.L. Jack & Co.

#10 x 3/4" Stainless Steel Phillips Pan Head Tek Screw 410

Self-drilling screws, often called Tek screws, save you time and effort by drilling their own holes and fastening in a single operation. They feature a notched tip that drills it’s own hole in metal and then forms or taps mating threads. Designed for speed and convenience, a properly specified self-drilling screw requires only a Screwgun for installation, eliminating the need for a pilot bit or a pre-drilled hole. Self-drilling screws are available in different head styles and materials and can be used for a variety of different applications such as fastening Metal to Metal or Wood to Metal. Teks will not fasten securely into wood so are best specified for applications where metal is the base layer of a fastened assembly. In this scenario a Tek, (self-drilling) screw works very well for securing wood, steel siding, rigid insulation and other construction materials to a suitable metal backing. Pan Head Teks are manufactured of case-hardened steel with a Clear Zinc Chromate plating to provide protection against normal atmospheric corrosion. They are also available in 400 series stainless steel for use in wetter or more severe environments when corrosion is a concern.

When selecting a self-drilling screw it is critical to match the screws drill capacity range, (Cut Depth), to the thickness of the metal being fastened. Tek screws can drill no deeper into metal than the length of the pilot tip on the screw. As a general rule, after installation a minimum of three screw threads should protrude past the back side of the supporting/fastened metal. Please see the Technical Specs section of this web page for specific cut depth capacity information. Successful installation of these self-drilling screws requires using a screw gun with a 0-2500 rpm range.

Item Type Pan Head Self-Drilling Screw
System of Measurement Inch
Drive Type Phillips
Diameter #10
Diameter (Decimal) 0.1900"
Length (inches) 3/4"
Cut Depth 0.036"-0.175"
Drive Size #2
Grade 410
Head Style Pan
Material Stainless Steel
Point Type #3
Supplier Part Number

4-PXD-10-75


10D75UXP4


Still looking for the perfect part? Having trouble finding it?
Call our product experts at 603-224-7370 and let us lend a hand.

K.L. Jack & Co.

#10 x 3/4" Stainless Steel Phillips Pan Head Tek Screw 410

Self-drilling screws, often called Tek screws, save you time and effort by drilling their own holes and fastening in a single operation. They feature a notched tip that drills it’s own hole in metal and then forms or taps mating threads. Designed for speed and convenience, a properly specified self-drilling screw requires only a Screwgun for installation, eliminating the need for a pilot bit or a pre-drilled hole. Self-drilling screws are available in different head styles and materials and can be used for a variety of different applications such as fastening Metal to Metal or Wood to Metal. Teks will not fasten securely into wood so are best specified for applications where metal is the base layer of a fastened assembly. In this scenario a Tek, (self-drilling) screw works very well for securing wood, steel siding, rigid insulation and other construction materials to a suitable metal backing. Pan Head Teks are manufactured of case-hardened steel with a Clear Zinc Chromate plating to provide protection against normal atmospheric corrosion. They are also available in 400 series stainless steel for use in wetter or more severe environments when corrosion is a concern.

When selecting a self-drilling screw it is critical to match the screws drill capacity range, (Cut Depth), to the thickness of the metal being fastened. Tek screws can drill no deeper into metal than the length of the pilot tip on the screw. As a general rule, after installation a minimum of three screw threads should protrude past the back side of the supporting/fastened metal. Please see the Technical Specs section of this web page for specific cut depth capacity information. Successful installation of these self-drilling screws requires using a screw gun with a 0-2500 rpm range.

Item Type Pan Head Self-Drilling Screw
System of Measurement Inch
Drive Type Phillips
Diameter #10
Diameter (Decimal) 0.1900"
Length (inches) 3/4"
Cut Depth 0.036"-0.175"
Drive Size #2
Grade 410
Head Style Pan
Material Stainless Steel
Point Type #3
Supplier Part Number

4-PXD-10-75


10D75UXP4


Still looking for the perfect part? Having trouble finding it?
Call our product experts at 603-224-7370 and let us lend a hand.
