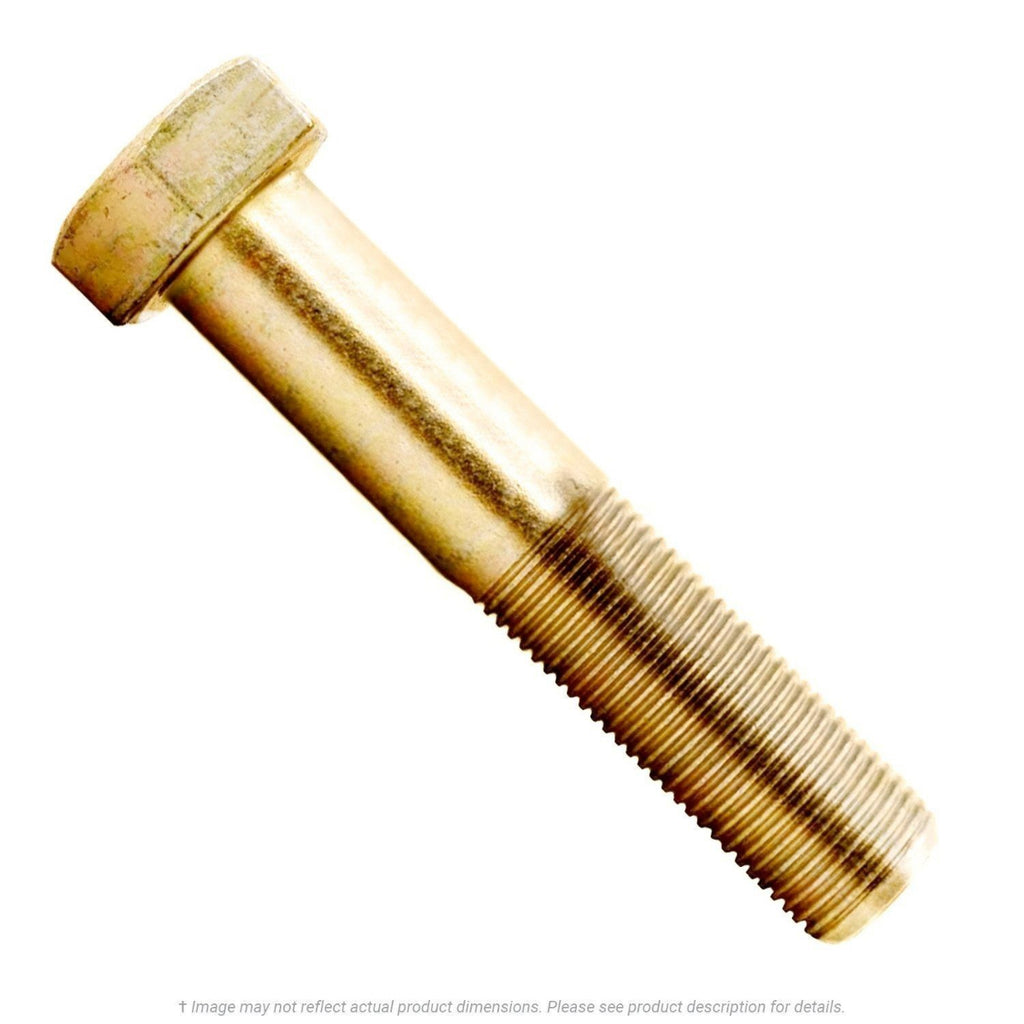

3/8"-16 x 4" Yellow Zinc Hex Head Cap Screw Grade 8
KL Jack & Co.

3/8"-16 x 4" Yellow Zinc Hex Head Cap Screw Grade 8

Code: 9941
$1.60
Out of Stock
  • Order by 2pm EST for same day shipping

  • Call 603-224-7370 to reach a parts specialist

  • No Sales Tax in NH


 WARNING:
Cancer and Reproductive Harm
www.p65warnings.ca.gov
K.L. Jack & Co.

3/8"-16 x 4" Yellow Zinc Hex Head Cap Screw Grade 8

Grade 8 Hex Head Cap Screws are manufactured from medium carbon alloy steel that has been quenched and tempered for strength. Grade 8 is the highest grade offering of the SAE J429 classification with a minimum tensile strength exceeding that of Gr.5 by 25% to over 40%, depending on the diameter. Grade 8 HHCS are commonly used in heavy construction equipment, commercial vehicles and applications that demand a high strength fastener. Hex Head Cap screws feature an integral washer face under the head for a smooth bearing surface and a chamfered thread at the tip to allow for ease of assembly. They can be used in a threaded hole or mated with a nut in a through bolting application. Grade 8 bolts are identified by a head marking with 6 radial lines evenly spaced 60 degrees apart. They meet the material specification SAE J429 Grade 8 and can be supplied either in a plain finish or with a Zinc Yellow (Dichromate) plating with a chromate secondary layer that offers additional protection from corrosion and has an attractive yellow/gold appearance.

  • Full Size Proof Stress 120,000 psi
  • Minimum Yield strength 130,000 psi
  • Minimum Tensile strength 150,000 psi

  • Manufacturer KL Jack Quality Vendor
    Item Type Hex Cap Screw - Inch
    System of Measurement Inch
    Drive Type Hex
    Diameter 3/8"
    Length (inches) 4"
    Finish Yellow Zinc
    Grade 8
    Hardness RC 33-39 HRC
    Head Height 0.226" min / 0.243" max
    Head Style Hex
    Hex Size 9/16"
    Material Steel
    Proof Stress 120,000 PSI
    RoHS Compliant No
    Dimensional Specification ASME B18.2.1
    Finish Specification ASTM F1941 Fe/Zn
    Material Specification SAE J429
    Thread Specification ASME B1.1, UNC, Class 2A
    Supplier Part Number 13814
    Tensile Strength 150,000 PSI
    Thread Length 1"
    Threads Per Inch 16
    Thread Style Partial Thread
    Thread Type Coarse
    Suggested Installation Torque 39 lb-ft. (Value for Zinc Plated Threads)
    Yield Strength 130,000 PSI

    37C400HCS8Z
